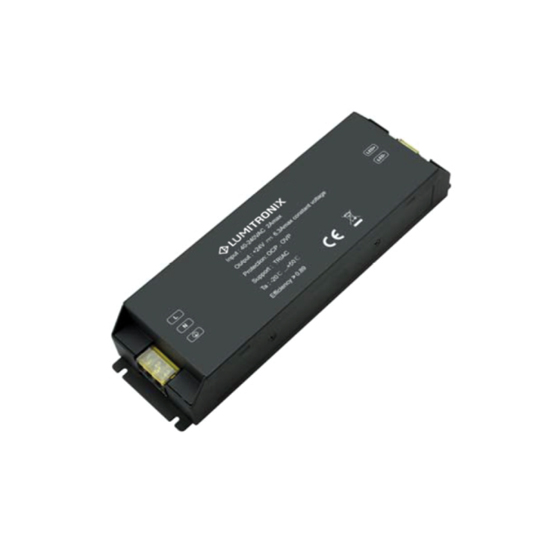

LUMITRONIX 150W 24VDC CONSTANT VOLTAGE TRIAC DIMMABLE DRIVER IP20
ELECTRICAL Item Code: LT150V0240TR2
Category:SUSPENDED LAMP
Category List: LED DRIVERS
Series: TR2
Brand: LUMITRONIX
Short Description:
Default Purchase Unit of Measure: Nos
IP Rate: IP20
Working Temp: -20°C~+50 °C
Output Voltage: 24VDC
Power: 150W
Input: 200-240VAC
Efficacy: 89
Dimension: 260x78.3x45mm
Operating Frequency: 50-60Hz
Function: TRIAC Dimmable
Material: Metal
Warranty Type : Repair
Warranty : 3 Years
Remarks: Dimming Range: 1-100% Dimming to off Over-current: Limit the output power to 110% - 150% of the rated power Short Circuit: Close the output, and restart to recover since the fault condition is removed for 10s Overvoltage: Hiccup, recovers after fault condition is removed
Category List: LED DRIVERS
Series: TR2
Brand: LUMITRONIX
Short Description:
LUMITRONIX 150W 24VDC CONSTANT VOLTAGE TRIAC DIMMABLE DRIVER IP20
Default Purchase Unit of Measure: Nos
IP Rate: IP20
Working Temp: -20°C~+50 °C
Output Voltage: 24VDC
Power: 150W
Input: 200-240VAC
Efficacy: 89
Dimension: 260x78.3x45mm
Operating Frequency: 50-60Hz
Function: TRIAC Dimmable
Material: Metal
Warranty Type : Repair
Warranty : 3 Years
Remarks: Dimming Range: 1-100% Dimming to off Over-current: Limit the output power to 110% - 150% of the rated power Short Circuit: Close the output, and restart to recover since the fault condition is removed for 10s Overvoltage: Hiccup, recovers after fault condition is removed
